Surface Mount Circuit Board Strain Gauge Selection Standards

Surface mount strain gauge selection relies on matching package shear modulus, serial bus update rates, and IPC-9704 board strain limits.

30.09.26 9 min

Pad

Surface-mounted strain gauges on printed circuit boards require tightly controlled land geometry so mechanical deformation transfers cleanly from substrate to active element. Surrounding trace layout dictates how much parasitic stiffness the copper introduces. Connecting an open-substrate sensor or a packaged piezoresistive IC to mismatched copper pads leads to uneven heat sinking during soldering and unequal mechanical restraint whenever the board flexes.

Computer generated illustration shows an optical sensor module integration stage featuring a transparent glass alignment fixture positioned above a purple printed circuit board.

Surface Mount Footprint Tolerances and Land Geometry

Standard IPC-7351 footprints work from component terminal dimensions, but strain gauges need tighter land tolerances because variations in fillet height directly alter shear transfer and shift baseline offset. Holding nominal pad width to plus or minus 0.025 millimeters prevents mismatched solder volume across Wheatstone bridge arms. Solder fillet height alters strain transfer.

Solder mask definition on landing pads establishes the effective wetted footprint during reflow. Non-solder-mask-defined pads distribute mechanical load more evenly than solder-mask-defined alternatives, whose mask edges introduce stress concentrations under dynamic board strain.

  • Solder fillet height asymmetry causes uneven mechanical force distribution, shifting the zero-strain bridge offset by up to 120 microstrain after thermal cycling.
  • Solder mask encroachment on landing pads restricts solder wetting, introducing mechanical strain concentrations that induce microcracking at package corners.
  • Substrate trace thickness mismatch leads to unbalanced thermal dissipation during reflow, pulling the strain sensor out of axial alignment by more than 0.05 millimeters.
  • Inadequate solder volume lowers joint shear strength beneath 15 megapascals, precipitating early fatigue failure under high-frequency dynamic loading.

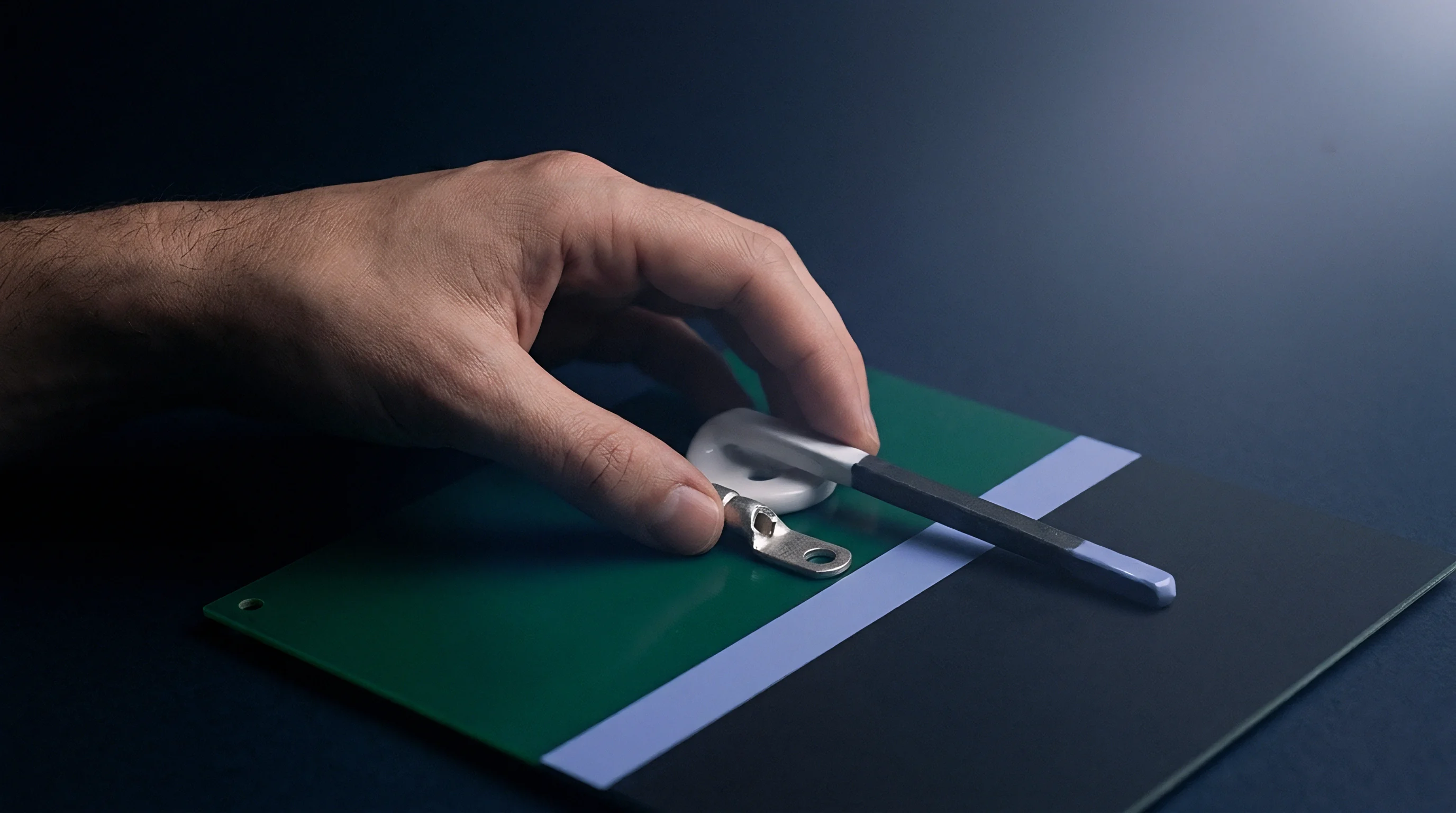

An engineer places a thermal sensor housing and a metal ring terminal on a flat circuit board for test integration.

Copper Area Requirements for Thermal and Mechanical Stability

Because board thickness sets the neutral axis depth under flexure, surface-mount strain sensors are typically placed to track structural deflection through assembly, in-circuit testing, and depanelization.

Running thermal relief spokes to the landing traces isolates the gauge from large ground planes during soldering without degrading the signal. Solid copper poured directly under the package stiffens the board locally by 4 to 8 percent relative to bare FR4, dampening the strain signal before it reaches the sensor. Layout guidelines specify a minimum copper clearance boundary of 1.5 millimeters surrounding the active sensing area to maintain uniform mechanical strain propagation across the substrate material.

Board strain measured at 500 microstrain under IPC/JEDEC-9704 guidelines produces zero microcracking in 0201 multilayer ceramic capacitors when solder fillet height stays below 50 percent of package termination height.

Flawed land patterns degrade strain measurement fidelity and leave solder joints vulnerable to early fatigue failure under cyclic flexure.

Bridge

Selecting sensing element architecture comes down to piezoresistive silicon dies versus thin-film nickel-chromium alloys. Surface-mount variants package these elements into standard Quad Flat No-lead and Dual Flat No-lead outlines, or mount them on polyimide carriers tailored for reflow soldering.

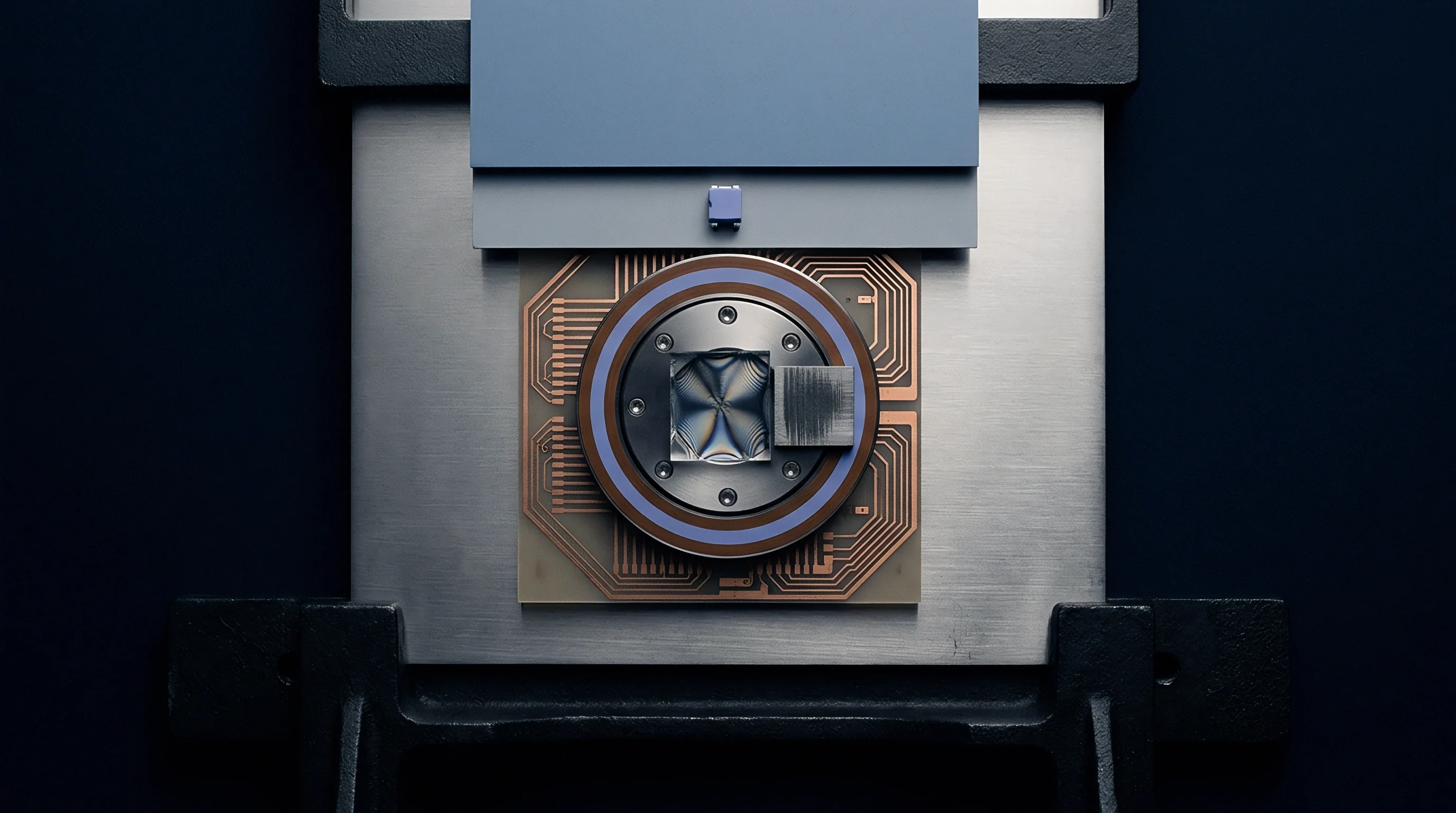

A rendered digital model displays an optical interferometer assembly mounted on a copper traced circuit board within a test fixture.

Piezoresistive Silicon versus Bonded Metallic Foil Characteristics

Semiconductor gauges deliver gauge factors between 100 and 170, compared to roughly 2.0 for constantan foil. Because piezoresistive dies produce millivolt-level signals per microstrain, they ease front-end gain requirements and pull industrial or automotive measurements well above the noise floor.

Silicon piezoresistors carry negative temperature coefficients that demand compensation on the die or in host firmware. Foil gauges, by contrast, use self-compensated alloys matched directly to substrate expansion rates, such as 16 ppm per degree Celsius for standard FR4 laminates.

Surface Mount Strain Gauge Package Topology Comparison
Package Form Sensing Element Gauge Factor Operating Temperature Board Footprint
Bare Foil SMT Module Constantan Alloy 2.0 to 2.2 -40 to +125 C 12.0 mm²
QFN-16 Plastic Package Piezoresistive Silicon 110 to 130 -40 to +105 C 9.0 mm²
LGA Analog Front End Silicon Piezoresistive IC 120 to 150 -40 to +125 C 16.0 mm²
DFN-8 Digital Sensor IC MEMS Silicon Bridge 100 to 140 -40 to +85 C 4.0 mm²
Gold pinned microprocessors and metallic test fixtures rest on a workbench inside a semiconductor assembly and electronics calibration facility.

Differential Signal Conditioning and Ratiometric Amplification

Integrating the front-end IC beside the sensor array provides low-noise excitation and amplification right at the pickup. Four active piezoresistive arms arranged in a full Wheatstone bridge on a single die cancel the thermal gradient offsets that complicate discrete quarter-bridge circuits. Auto-zero operational amplifiers keep input offset voltages below 5 microvolts across full industrial operating temperature ranges.

  • Dynamic strain bandwidth target determines whether an analog ratiometric output or a digitizing delta-sigma front-end gets selected for signal processing.
  • Operating temperature spectrum dictates whether active secondary polynomial temperature compensation is necessary within the sensor package logic.
  • Mechanical strain exposure limit selects between high-sensitivity piezoresistive silicon components and high-elongation metallic foil gauge configurations.
  • Automated pick and place capability favors tape-and-reel surface-mount IC packages over surface-mountable open-substrate foil elements requiring manual bonding inspection.

Placing ratiometric amplification right next to the bridge preserves signal integrity against ground noise in industrial environments.

Creep

Viscoelastic relaxation in substrate epoxy resins causes time-dependent signal decay under sustained mechanical load. As FR4 polymer chains settle under continuous stress, gauge resistance drifts downward even when physical board deflection does not change.

Rectangular gauge blocks of varying materials sit stacked on a precision base plate beneath a microfibre cloth on a metal machine bed.

Viscoelastic Relaxation in FR4 Substrates under Load

Under steady static load, molecular relaxation in glass-reinforced epoxy produces an exponential decay in recorded strain. Laminates with glass transition temperatures above 170 degrees Celsius limit this viscoelastic drift far better than standard 130 degrees Celsius Tg resins.

Elevated temperatures accelerate substrate creep by increasing polymer chain mobility. Gauges specified for static monitoring therefore require mold compounds engineered to resist relaxation under continuous mechanical loading up to 1000 microstrain.

Compliance with IPC/JEDEC-9702 mandates high-speed strain gauge recording during depanelization routing to prevent mechanical lifting of trace pads.
A technician uses fine tweezers to carefully position small integrated circuit packages onto a substrate within an industrial assembly environment.

Hysteresis Mitigation and Adhesive Interface Mechanics

Transverse load transfer depends on the shear modulus of the solder intermetallics joining board copper to package pads. Lead-free reflow yields Cu6Sn5 and Cu3Sn layers with shear moduli exceeding 35 gigapascals, coupling board strain into the sensor element with return hysteresis under 0.15 percent of full-scale output.

Excess solder adds compliance that raises zero-return hysteresis after cycling. Restricting stencil thickness to 0.10 millimeters cuts viscous shear losses across lead-frame joints and stabilizes baseline readings during cyclic loading.

Long-term baseline drift often traces to ambient moisture absorption in the PCB laminate rather than relaxation of the die-attach adhesive.

Bus

Digital architectures balance sample rate, operating current, and microcontroller pin count. Surface-mount packages with on-board analog-to-digital converters digitize bridge outputs at the point of measurement, passing microstrain data directly across serial buses.

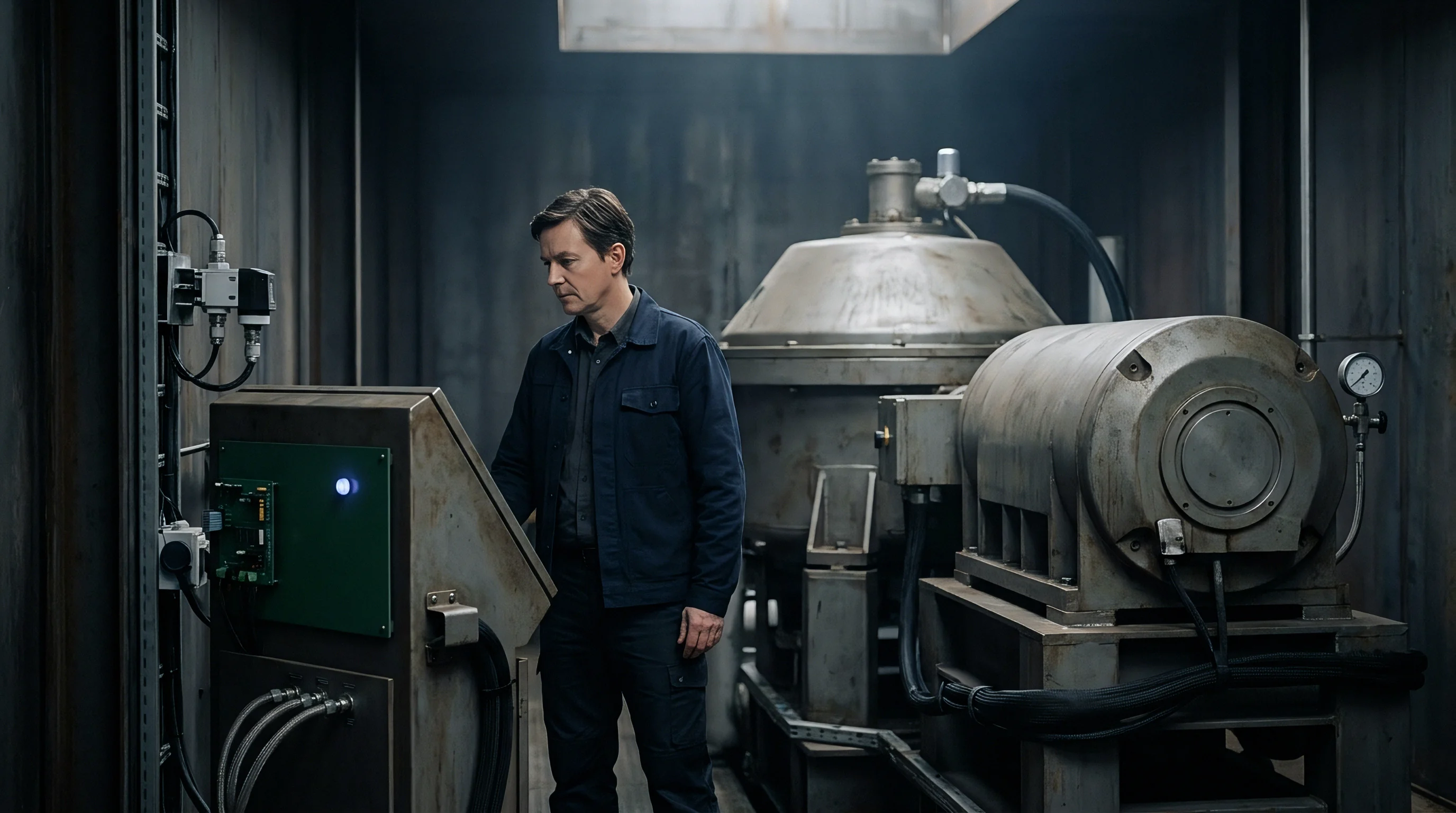

A man operates a complex electronic control panel adjacent to heavy industrial machinery and measurement components within a production facility setting.

Which Serial Bus Fits High Dynamics?

Synchronous serial clocking captures transient shocks above 10 kilohertz sampling rates. Running Serial Peripheral Interface transfers in full-duplex bursts up to 20 megahertz allows host microcontrollers to query multi-axis sensor arrays inside microsecond windows.

At 1 megahertz, Inter-Integrated Circuit protocols in Fast Mode Plus limit 24-bit polling to roughly 1 kilohertz once line capacitance slows transitions. System architects select serial architectures based on bus length, node count, and required latency during transient board events.

  1. Power up the sensor package and assert the reset line for a minimum of 2 milliseconds to initialize internal registers.
  2. Read factory calibration coefficients from register addresses 0x10 through 0x1F over the serial clock line.
  3. Configure the gain stage and low-pass filter corner frequency in control register 0x02 based on target board dynamics.
  4. Issue a continuous conversion command and poll the interrupt pin for data-ready assertion before reading 24-bit strain values.
A ceramic reference sphere and stacked metal gauge blocks rest upon a circular metallic stage positioned inside a geometric laboratory test environment.

Analog Ratiometric Output against Digitized Serial Formats

Ratiometric voltage outputs track the excitation rail to cancel power supply drift. Analog sensors swinging between 0.5 and 4.5 volts match the internal ADC spans of standard host microcontrollers directly.

Digital Bus Interface Performance and Driver Integration Effort
Interface Type Max Data Rate Latency Host Pin Count Firmware Integration Weeks
Analog Ratiometric 100 kHz Analog 1.5 µs 1 ADC Pin 0.5 Weeks
I2C Fast Mode Plus 1.0 MHz Clock 250 µs 2 SDA/SCL 2.0 Weeks
SPI 4-Wire Mode 0 20.0 MHz Clock 15 µs 3 + CS Pin 1.5 Weeks
Frequency Modulated 500 kHz Output 8.0 µs 1 Timer Pin 1.0 Weeks
Analog ratiometric output strain gauge amplifiers reduce host clock noise vulnerability compared to unamplified raw millivolt bridge structures.

Whether future high-speed sensor buses will turn to differential signaling for sub-microsecond latency in automotive power electronics remains an open question.

Yield

SMT line yield depends on consistent paste volume, stable thermal profiling, and component placement accuracy. Sensors must withstand standard reflow without package delamination, voiding, or post-assembly calibration shifts.

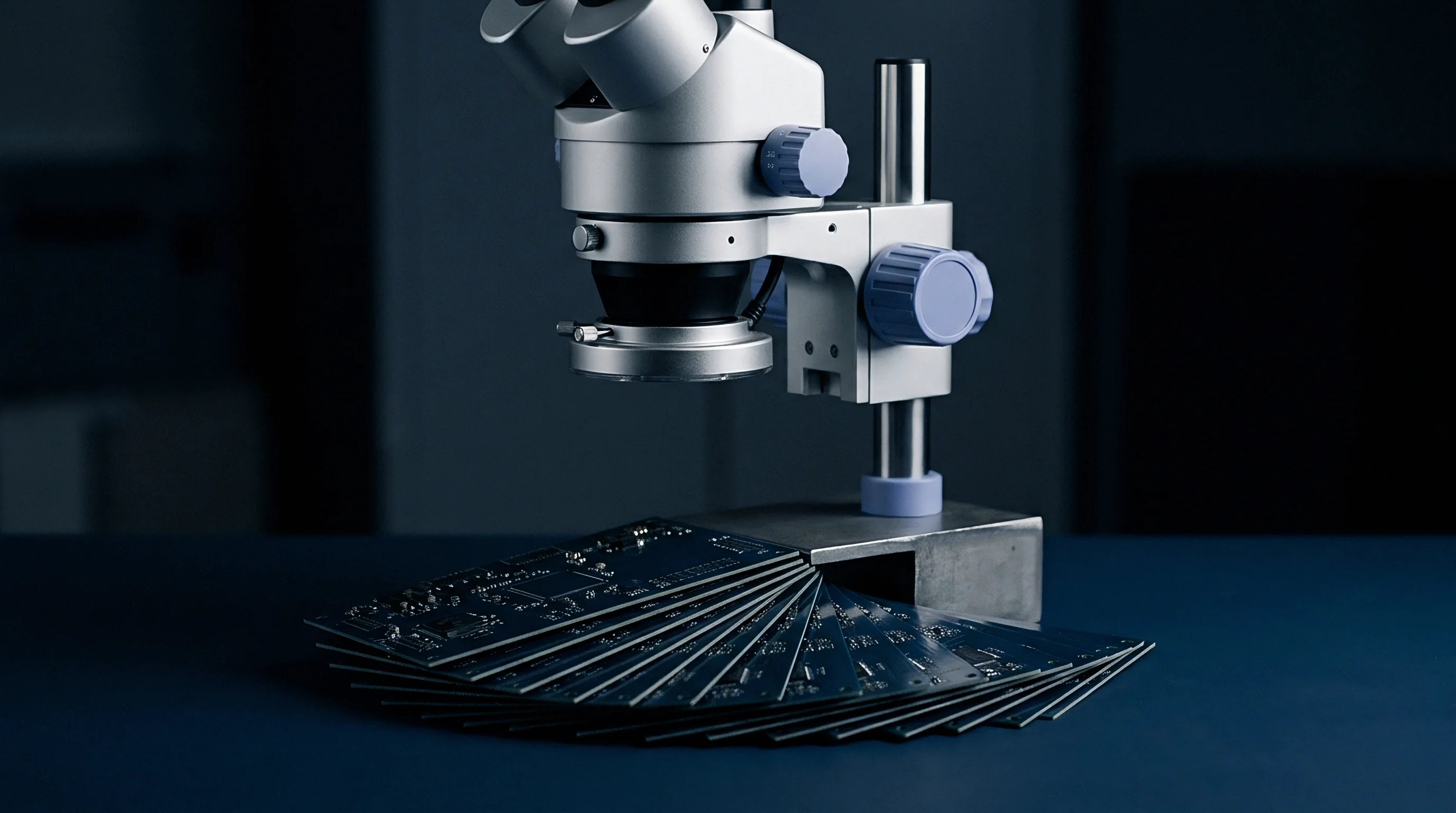

A binocular stereo microscope stands positioned above a series of dark unpopulated circuit boards fanned out on a flat workspace.

Reflow Stencil Apertures and Solder Joint Fatigue

Maintaining stencil aperture area ratios above 0.66 prevents paste clogging during squeegee passes. Laser-cut stainless stencils with electropolished apertures release cleanly onto strain gauge landing pads.

Rounding the corners of square apertures cuts solder balling defects by 85 percent compared to sharp square cutouts. Keeping solder volume within plus or minus 10 percent across opposing pads prevents asymmetrical strain transfer across surface-mount sensor packages.

  • JEDEC J-STD-020 reflow compliance requires surface-mount strain sensors to withstand a peak package body temperature of 260 degrees Celsius for 30 seconds.
  • IPC-7351 land pattern standard governs nominal pad extensions to maintain inspection-compliant solder toes on small-outline packages.
  • JEDEC J-STD-033 moisture handling rules enforce floor-life tracking for Moisture Sensitivity Level 3 components once foil packaging is unsealed.
  • IPC-9704 strain limit thresholds establish maximum allowable microstrain exposure levels during circuit board assembly, in-circuit testing, and depanelization.
Three dimensional render of a microelectronic chip positioned on a dark carrier substrate with copper interconnect pads and an adjacent circuit board.

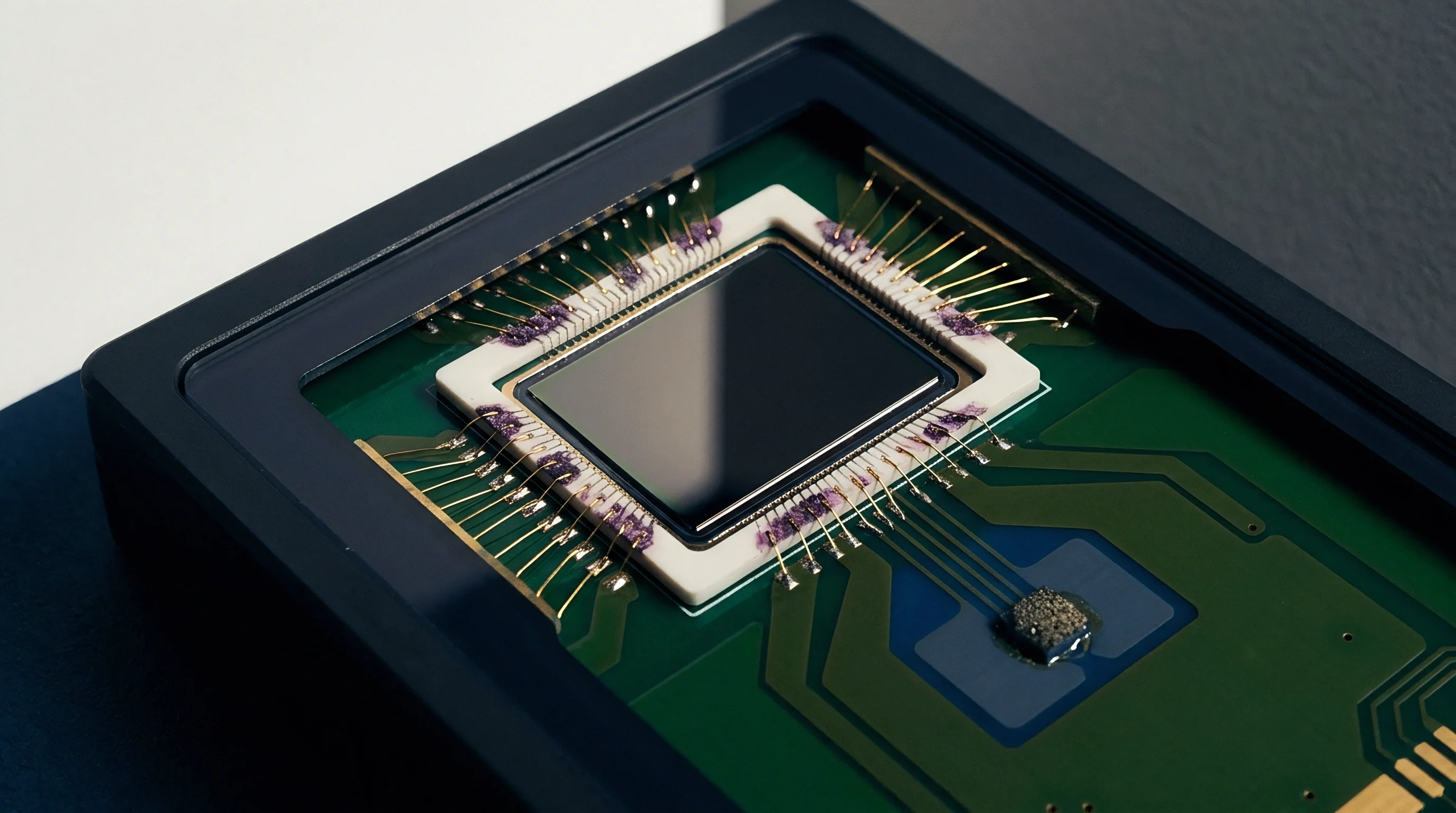

Moisture Sensitivity and Thermal Reflow Limits

Trapped moisture in plastic packages vaporizes at peak reflow temperatures of 260 degrees Celsius. Rapid internal pressure buildup cracks mold compounds and shears internal bond wires connecting the silicon die to leadframe pads.

Sealed moisture-barrier bags with desiccant preserve an MSL 3 floor life of 168 hours after opening. When floor exposure exceeds that window, baking parts at 125 degrees Celsius for 24 hours removes moisture before placement.

Section 5.2 of IPC/JEDEC-9704A requires real-time strain logging during depanelization, stopping the line if peak principal strain exceeds 500 microstrain.

Cost

Evaluating strain components requires balancing bare unit pricing against assembly labor, firmware overhead, and production calibration. Raw component cost represents only a fraction of total expense when non-standard parts require secondary handling.

Rectangular material coupons including textured polymers, brushed metals, and elastomers are arranged in overlapping rows on a blue workspace.

Delivered Price Structures and Sourcing Ladders

Piezoresistive ICs show much steeper volume pricing curves than bare foil gauges requiring manual lead attachment. Packaged in standard 7-inch tape-and-reel reels, digital sensor ICs feed standard pick-and-place lines running above 15,000 components per hour.

Switching to surface-mount QFN packages lowers landed assembly cost by eliminating the manual lead soldering, joint inspection, and conformal coating touch-ups typical of foil installations.

Delivered Unit Cost and Assembly Overhead Across Production Volumes
Component Type 1k Unit Price ($) 10k Unit Price ($) 100k Unit Price ($) SMT Assembly Impact
Bare Foil SMT Element $12.50 $8.20 $5.40 Requires Manual Inspection
QFN Silicon Strain IC $4.80 $2.60 $1.35 Standard Pick and Place
LGA Analog Front End IC $6.20 $3.90 $2.10 Standard Pick and Place
DFN SPI Digital Sensor IC $5.50 $3.10 $1.65 Standard Pick and Place
Flexible circuitry connects to a green printed circuit board inside an assembly fixture featuring a metallic track with a precision contact point.

Make or Buy Integration Arithmetic

Discrete analog conditioning circuits built around foil gauges consume significant engineering time. Upfront design of differential front ends, layout passes, and compensation firmware frequently exceeds $45,000 in non-recurring engineering costs.

Pre-calibrated digital ICs bypass board-level analog routing and compress end-of-line calibration from 45 seconds to a single register write. Break-even volume for integrated packages generally arrives below 3,500 total units.

Bare piezoresistive strain gauge dies mounted directly inside QFN packages eliminate manual lead-wire soldering on automated surface-mount placement lines.

Above 100,000 units, placing packaged digital strain sensors directly onto the main board yields substantial per-unit savings.

Nomenclature

Thermal Strain Offset

Temperature Correction ~ False signal components appearing in strain gauge data arise from the difference in thermal expansion between the sensor and the test specimen.

ADC Sample Rate

Temporal Resolution ~ Discrete intervals define the period between consecutive snapshots in an analog to digital conversion cycle.

Ratiometric Analog Output

Voltage Compensation ~ Signal interface translates a physical measurement into a voltage that varies in direct proportion to the supply voltage of the sensor.

Reel Packaging Cost

Supply Expense ~ Expenditures associated with delivering electronic components on continuous carrier tapes represent a major part of the total unit cost for surface-mount devices.

Board Flex Testing

Mechanical Evaluation ~ Mechanical testing of printed circuit assemblies establishes the physical limits before copper traces fracture or solder joints disconnect.

Strain Sensitivity Gauge Factor

Proportionality Constant ~ Ratio values expressing the change in electrical resistance per unit of mechanical strain characterize the performance of a resistive sensor.

IPC-9704

Monitoring Standard ~ Printed circuit assembly testing guidelines define the standardized operational methodology for quantifying mechanical strain during circuit board fabrication, assembly, and test operations.

Strain Gauge

Sensor Principle ~ The device translates mechanical deformation into electrical resistance variations through a bonded metallic foil grid.

Creep Rate

Deformation Metric ~ The time-dependent slow strain of a solder joint under constant mechanical load or thermal stress is calculated to predict long-term reliability.

Gain Drift

Calibration Stability ~ Sensitivity variance represents the gradual degradation of an amplification factor within electronic signal processors as environmental stressors act upon internal components.

I2C Fast Mode

Communication Protocol ~ Serial bus specifications define the timing and electrical requirements for synchronous data exchange between integrated circuits at rates reaching 400 kilobits per second.

Land Pattern IPC-7351

Geometric Specification ~ Surface mount technology relies on defined conductive regions upon a printed circuit board to ensure reliable solder joint formation.
