Viscoelastic Die Attach Relaxation Drift Modeling in Piezoresistive MEMS Sensors
Viscoelastic relaxation in organic die attach layers drives long-term zero drift in piezoresistive MEMS sensors by continuously altering residual die strain.

Pack

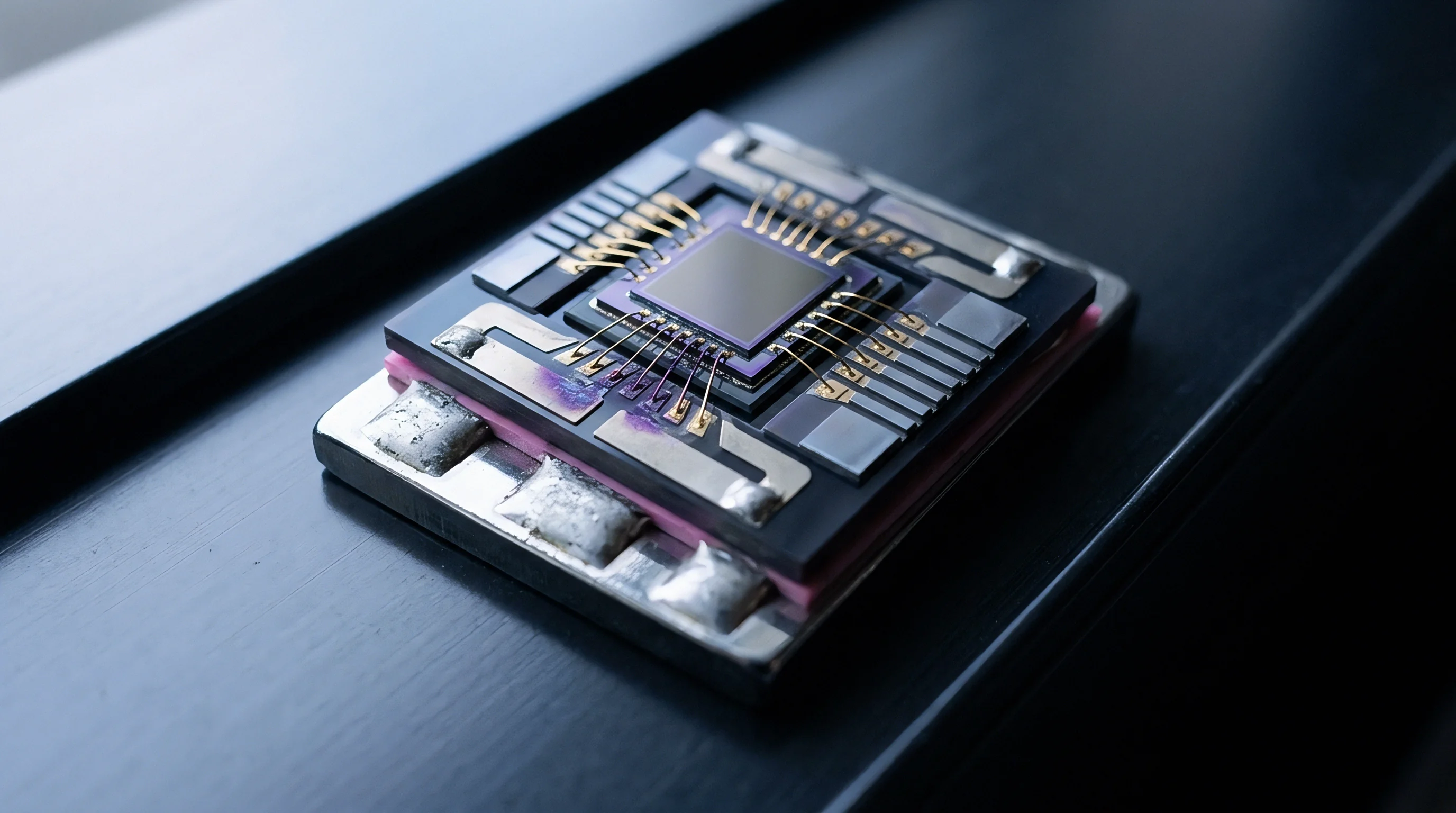

Silicon die assembly within piezoresistive pressure sensors involves multi-layer material stacks bonded by organic polymeric adhesives. Mechanical stress generated by temperature shifts, moisture sorption, or structural curing propagates through the substrate directly into the active piezoresistive element array. Single-crystal silicon displays minimal mechanical hysteresis, yet organic die attach compounds exhibit continuous time-dependent strain responses under ambient thermal loading.
Structural mismatch between the silicon die, the die attach pad, and the underlying ceramic or metallic header creates a permanent stress reservoir across the micro-electromechanical assembly.
Thermal expansion coefficients differ dramatically across these structural layers. Single-crystal silicon exhibits a coefficient of thermal expansion near 2.6 ppm per degree Celsius. Ceramic headers typically range from 6.0 to 7.5 ppm per degree Celsius, while metallic housings reach 12 to 18 ppm per degree Celsius.
Unfilled or filled epoxy adhesives span thermal expansion values from 25 to 65 ppm per degree Celsius below their glass transition temperature. The organic adhesive layer operates as a mechanical bridge and a stress accumulator. When the assembly cools from the curing temperature down to ambient room temperature, differential thermal contraction locks high initial shear stresses into the die attach joint.
Epoxy matrix relaxation alters die stress. Silicon piezoresistors detect subtle strain changes. Thermal expansion mismatch drives joint shear.
Initial residual stress inside the bonded stack dissipates slowly over time as the polymer chains undergo physical aging and microscopic structural rearrangement.
The mechanical equilibrium of a die attach layer shifts continuously over time through internal polymer chain rearrangement.
Strain transfer through the die attach thickness depends directly on adhesive layer uniformity, fillet geometry, and void distribution. Non-uniform bondline thickness creates localized stress gradients across the piezoresistors integrated into the silicon diaphragm surface. Mechanical stress coupling across the multi-layer stack operates through several distinct micro-structural mechanisms:
- Interfacial shear transfer governs the transmission of thermal expansion mismatch forces from the header substrate into the lower face of the silicon die.
- Bulk viscoelastic creep alters the internal stress profile of the cross-linked adhesive layer under sustained mechanical shear.
- Outgassing micro-voiding introduces localized stress concentrations that distort the planar symmetry of the piezoresistive Wheatstone bridge array.
- Edge fillet climbing introduces asymmetric bending moments along the perimeter of the silicon diaphragm.
Failing to account for structural stress transfer in the physical die assembly leads to unrecoverable zero-point calibration drift, forcing premature field replacement of submerged industrial pressure transmitters.

Decay
Polymeric materials utilized for die attachment undergo continuous structural rearrangement when subjected to sustained mechanical shear. Glass transition temperature dictates relaxation rates. Polymer chains below their glass transition temperature remain in a non-equilibrium state, slowly evolving toward a lower free-volume configuration over operational time.
Physical aging increases the storage modulus of the adhesive while altering its energy dissipation capacity. Higher temperatures accelerate this aging process, increasing the rate at which frozen-in thermal stresses decay toward mechanical equilibrium.
Viscoelastic stress relaxation follows a dual-pathway mechanism consisting of an instantaneous elastic response followed by time-dependent viscous flow. The initial elastic shear modulus converts applied thermal displacement into proportional structural stress. The viscous component dissipates this strain energy over time, transferring shear forces into axial and planar strain within the silicon substrate.
Temperature shifts alter both the rate of stress dissipation and the asymptotic modulus limit of the cured polymer matrix.
| Material Chemistry Formulation | Glass Transition Tg (degrees C) | Unrelaxed Modulus E_0 (GPa) | Relaxed Modulus E_inf (MPa) | Characteristic Time tau (Hours) | CTE Below Tg (ppm per degree C) |
|---|---|---|---|---|---|
| Silver-Filled Rigid Epoxy | 145 | 8.5 | 420 | 120 | 29 |
| Flexible Modified Epoxy | 65 | 3.2 | 45 | 18 | 52 |
| Addition-Cure Silicone | -55 | 0.08 | 1.2 | 2.4 | 180 |
| Thermosetting Polyimide | 260 | 11.0 | 850 | 450 | 18 |
Uncured polymer chains migrate during aging. High storage modulus formulations generate elevated initial stresses that decay over extended timeframes. Low modulus compounds reduce initial residual strain but display susceptibility to ambient moisture absorption and low-temperature stiffness degradation.
Moisture ingress lowers the effective glass transition temperature of epoxy systems through plasticization, accelerating stress dissipation kinetics under humid operational conditions.
A silver-filled epoxy die attach displaying a glass transition temperature of 145 degrees Celsius experiences a 12 percent drop in shear modulus after 1000 hours at 85 degrees Celsius.
Selecting die attach compounds with glass transition temperatures well above the maximum field operating limit stabilizes the polymer network against rapid mechanical relaxation.

Rheology

Constitutive Formulation of Prony Series Expansion
Time-dependent strain energy dissipation in die adhesives requires generalized constitutive models that capture instantaneous and asymptotic material responses. Linear viscoelastic behavior under isothermal conditions is accurately represented using a Maxwell model array expressed as a Prony series expansion. The time-dependent relaxation modulus E(t) defines how internal material stiffness decays from an initial unrelaxed state down to a long-term equilibrium value.
E(t) = E_inf + sum
The parameter E_inf designates the fully relaxed long-term equilibrium modulus, E_i represents the stiffness weighting coefficient of individual Maxwell elements, and tau_i denotes the characteristic relaxation time constant for each discrete branch. A three-branch or five-branch Maxwell chain provides sufficient mathematical flexibility to model stress decay across four time decades. Prony terms describe modulus decay kinetics.

Time-Temperature Superposition and Shift Factors
Characterizing long-term material behavior at ambient temperatures through short-term testing relies on time-temperature superposition principles. The Williams-Landel-Ferry equation models temperature dependency above the glass transition temperature, generating horizontal shift factors a_T to construct master relaxation curves.
log10( a_T ) = -C1 ( T – T_ref ) /
Empirical material constants C1 and C2 govern shift factor sensitivity relative to reference temperature T_ref. For operating regimes below the glass transition temperature, Arrhenius thermal activation kinetics describe shift behavior, linking activation energy E_a directly to thermal acceleration factors.
a_T = exp
The mathematical extraction of Prony series parameters from experimental Dynamic Mechanical Analysis data follows a systematic procedure:
- Perform isothermal strain-controlled stress relaxation scans across a broad temperature range in 10 degree Celsius increments.
- Apply horizontal shift factors along the logarithmic time axis to assemble a continuous master curve at the designated reference calibration temperature.
- Fit the master relaxation curve using non-linear least squares regression to calculate individual elastic weighting coefficients E_i.
- Assign discrete relaxation time constants tau_i distributed logarithmically across the operational lifespan target.
- Validate the constitutive model against dynamic storage and loss modulus spectra measured via multi-frequency temperature sweeps.
Quantifying relaxation parameters through dynamic mechanical analysis reveals the precise rate at which mechanical shear converts into zero-point sensor drift.
Polymer relaxation kinetics follow predictable activation energies when ambient temperatures remain strictly below the glass transition threshold.
Adhesive manufacturers frequently state that published room-temperature lap shear strength figures sufficiently guarantee mechanical stability over extended operational lifespans.

Zero

Transduction of Shear Stress into Voltage Offset
Piezoresistive Wheatstone bridges formed on single-crystal silicon diaphragms convert mechanical strain directly into differential electrical output. Piezoresistors positioned along specific crystallographic axes react to normal and shear stress components within the silicon lattice. The piezoresistive effect transforms mechanical strain changes induced by die attach relaxation into unwanted baseline electrical shift.
Silicon piezoresistors detect subtle strain changes. Shear stress relaxation shifts sensor offset. Wheatstone bridge balance shifts over time.
The fractional change in electrical resistivity delta_rho / rho_0 along a piezoresistive element depends upon planar stress components sigma_xx, sigma_yy, and shear stress tau_xy multiplied by their respective piezoresistive coefficients pi_11, pi_12, and pi_44.
delta_rho / rho_0 = pi_11 sigma_xx + pi_12 sigma_yy + pi_44 tau_xy
For p-type piezoresistors aligned along the direction of a (100) silicon crystal plane, the longitudinal piezoresistive coefficient reaches its maximum value, rendering the bridge balance sensitive to changes in differential mechanical shear at the die-adhesive interface.
| Dopant Type and Plane Orientation | Crystallographic Direction | Piezoresistive Coefficient pi_11 (10^-11 Pa^-1) | Piezoresistive Coefficient pi_12 (10^-11 Pa^-1) | Piezoresistive Coefficient pi_44 (10^-11 Pa^-1) | Zero Offset Sensitivity (uV per V per MPa) |
|---|---|---|---|---|---|
| p-type Silicon (100) | Axis | +6.6 | -1.1 | +138.1 | 65.2 |
| n-type Silicon (100) | Axis | -102.2 | +53.4 | -13.6 | 48.7 |
| p-type Silicon (111) | Axis | +3.1 | -0.5 | +93.5 | 42.1 |

Zero-Point Drift Prediction and Mitigation Criteria
When the internal shear stress tau_xy within the die attach layer relaxes over operational time t, the residual shear force exerted on the silicon diaphragm decreases proportionally. This stress reduction causes continuous drift in the unamplified zero-pressure signal V_out / V_in of the sensor.
V_out / V_in = S_0 + 0.5 pi_44
Tracking this temporal zero drift requires isolating physical die attach relaxation from thermal coefficient shifts and electronic amplifier drift. Sensor housing designs incorporate specific stress isolation features to minimize structural energy transmission into active bridge elements.
- Symmetric die placement aligns the active Wheatstone bridge along lines of structural strain symmetry to cancel common-mode shear relaxation components.
- Corner stress relief trenches etched directly into the silicon substrate block shear forces propagating from perimeter die attach fillets.
- Pedestal mounting geometries elevate the active diaphragm above the bond plane, interposing a low-expansion glass or silicon spacer to attenuate joint stress.
- Thick bondline controls establish a uniform elastic cushion that reduces peak interfacial shear stresses generated during thermal excursions.
The precise partitioning between reversible thermal expansion hysteresis and irreversible polymeric relaxation during transient ambient thermal spikes remains difficult to separate on active sensor lines.

Audit
Verification of long-term signal stability across high-volume production lots relies on standardized environmental stress testing. Accelerated thermal aging protocols accelerate chemical cross-linking reactions and viscoelastic relaxation, compressing three years of field service exposure into controlled laboratory schedules. High-Temperature Operating Life tests maintain sensors at maximum rated ambient temperatures while monitoring real-time zero offset stability.
Calibration certificates expire as strain relaxes. Field drift corrupts system calibration limits. Moisture absorption lowers matrix glass transition.
Predictive drift modeling relies on empirical acceleration factors derived from multi-temperature stress schedules. Comparing drift rates recorded at 85 degrees Celsius, 105 degrees Celsius, and 125 degrees Celsius allows quality engineers to calculate material-specific activation energies for long-term zero drift. Sensors exhibiting zero shifts that exceed mathematical model predictions indicate batch contamination, incomplete adhesive curing, or irregular fillet geometry.
| Test Protocol Designation | Temperature and Humidity Profile | Test Duration (Hours) | Equivalent Field Service (Years) | Model Drift Accuracy Confidence (%) |
|---|---|---|---|---|
| HTOL Standard Baseline | 125 degrees C / Dry Ambient | 1000 | 3.0 at 25 degrees C | 91.5 |
| Damp Heat Accelerated aging | 85 degrees C / 85% RH | 500 | 2.5 Humid Field | 86.2 |
| Thermal Shock Cycling | -40 to +125 degrees C / Air-to-Air | 250 Cycles | 5.0 Thermal Excursions | 78.4 |
| Extended Stress Screening | 150 degrees C / Dry Ambient | 336 | 4.2 at 25 degrees C | 94.1 |
Standardized qualification procedures demand strict control over die attach curing parameters to prevent premature drift in field applications. Inadequate curing schedules leave unreacted monomer species inside the polymer matrix, lowering the glass transition temperature and increasing long-term zero instability. Incoming batch quality audits verify glass transition temperature and cross-linking density prior to assembly commitment.
Procurement specifications referencing IPC-TM-650 Method 2.4.24 enforce maximum allowable glass transition temperature shifts of no more than 3 degrees Celsius across incoming die attach lots.
Incorporating IPC-TM-650 Method 2.4.24 thermal analysis requirements into die attach procurement contracts forces suppliers to certify Tg retention within a 3 degree Celsius window across raw material batches.
