Quantifying Micro-Scale Shear Creep and Sensor Offset Drift Rates

Micro-scale shear creep in die-attach adhesives drives sensor offset drift; selecting high-Tg polymers and thermal pre-aging eliminates costly field recalibration.

03.10.26 15 min

Joint

A silicon piezoresistive pressure cell attached with a 25-micrometer epoxy layer under sustained 3.5 MPa shear stress displays a continuous displacement rate of 14 nanostrain per root-hour at 23°C, driving zero-point baseline wander without external load changes. In micro-electromechanical systems and precision strain-gauge assemblies, structural adhesives, die-attach epoxies, and elastomeric potting compounds form the primary mechanical joints between sensing elements and substrates. Because these organic polymers are viscoelastic, continuous mechanical pre-loads or differential thermal expansion stresses cause time-dependent shear deformation ~ commonly termed shear creep.

When an adhesive creeps at the micro-meter or sub-nanometer scale, the strain state of the bonded transducer drifts incrementally over months and years, producing offset drift rates that easily mimic electronic noise or sensor degradation.

Quantifying micro-scale shear creep requires examining both structural joint mechanics and solid-state physics. When force, pressure, or torque acts on a transducer housing, the load path runs directly through the structural adhesive bond line. If that bond line yields or creeps microscopically, the stress field impressed upon the active piezoresistive, capacitive, or optical strain-sensing element shifts accordingly.

A baseline calibration cannot correct micro-scale structural movements, meaning the resulting zero-point offset drift represents a permanent calibration shift that cannot be filtered out digitally or eliminated through short-term recalibration routines.

A rendered scene shows a small, sharp metallic component lying on a smooth gray processing platform within a dark blue automated system.

Micro-Scale Interface Shear Dynamics

Applied mechanical forces propagate straight through structural adhesives into internal sensing elements. Adhesive layers concentrate shear stress heavily near outer die boundaries and perimeter edges. Micro-scale shear creep begins in these localized high-stress zones as polymer chains slide and alter their conformations.

The actual shear strain rate depends on the applied shear stress magnitude, ambient thermal energy, crosslink density, and the degree of moisture plasticization within the cured resin network.

As the organic material yields, localized stress relaxes and redistributes internal forces into adjacent, un-deformed bonding zones. This progression drives continuous, time-dependent strain shifts across the die plane. Transducers operating under sustained mechanical pre-loads, including diaphragm-based pressure transmitters and bolt-on load cells, display offset drift rates directly proportional to this interface shear velocity.

Polymer displacement across adhesive bonds introduces continuous strain variations that corrupt primary sensor calibration baselines.
An optical probe directs a focused beam onto a miniature electronic component positioned on a matte testing surface for precise sensor evaluation.

Polymer Die Attach Degradation Pathways

Sustained mechanical stress induces localized molecular bond sliding within thermosetting resins. In high-precision micro-scale sensors, die attach degradation typically proceeds along several physical pathways that accelerate creep velocity:

  • Viscoelastic matrix compliance under sustained shear load introduces structural displacement between sensor elements and substrate.
  • Interfacial moisture plasticization lowers glass transition temperature and increases creep rates in humid environments.
  • Thermal expansion mismatch generates permanent shear stress across thin adhesive layers during thermal cycling.
  • Micro-void formation in die-attach adhesives concentrates localized shear stress and speeds up localized creep.

Micro-voids introduced during manual or automated dispensing disrupt uniform shear transfer across the joint boundary. These voids act as geometric stress risers where localized shear stresses can exceed three times the nominal mean value. As a result, micro-scale shear creep develops rapidly around void perimeters and spreads across the bond surface over extended service.

Moisture ingress compounds the problem by swelling the matrix and breaking inter-chain hydrogen bonds, effectively lowering the glass transition temperature of the die-attach resin.

Long-term mechanical stability in bonded transducers depends on keeping bond line stresses within the linear viscoelastic regime. Once local shear crosses critical yield thresholds, non-linear creep takes over, turning a decaying logarithmic baseline drift into a steady linear velocity that quickly exhausts the allowable error budget.

Relaxation

Mechanical stress decay under constant displacement remains a primary driver of sensor instability over extended operating cycles. Shear creep and stress relaxation represent two complementary aspects of polymer viscoelasticity: creep describes time-dependent strain accumulation under sustained stress, while relaxation measures the decay of internal stress under fixed displacement. In constrained sensor architectures, such as clamped piezoelectric crystals or pre-strained strain gauges, stress relaxation in the mounting adhesive bleeds off preload forces, shifting the zero-load output signal over time.

Modeling viscoelastic stress decay mathematically relies on Boltzmann superposition and generalized Maxwell models, which represent polymer mechanics as parallel networks of linear elastic springs and viscous dashpots. By measuring relaxation moduli across broad time windows, metrologists can project multi-year offset drift from short laboratory runs using time-temperature superposition principles.

Digital render of metal braided mesh components and optical fiber alignment during precision laser manufacturing on an industrial assembly station.

Viscoelastic Compliance and Stress Decay Equations

Time-dependent deformation under constant load follows the physics of the glass transition. Shear creep compliance ~ the ratio of time-dependent shear strain to constant applied shear stress ~ governs how the die attach layer alters its dimensions over an operating lifetime. Total creep compliance combines instantaneous elastic compliance, delayed viscoelastic compliance, and viscous flow compliance.

At operational temperatures well below the glass transition temperature, viscous flow remains negligible, leaving delayed viscoelastic compliance as the main driver of micro-scale structural movement.

Time-dependent shear compliance generally fits an extended Kohlrausch-Williams-Watts stretched exponential formulation or a power-law approximation. Under sustained mechanical shear, instantaneous micro-strain jumps to an initial elastic value before entering a transient logarithmic primary creep phase. As crosslinked polymer networks rearrange internally, the creep rate tapers into a secondary quasi-steady regime.

Incorporating measured compliance parameters into structural models allows precise calculation of localized strain shifts across active piezoresistive or capacitive zones.

Digital illustration reveals a microelectronic sensor core mounted between layered printed circuit boards inside a darkened laboratory workspace.

Logarithmic Creep Behavior under Constant Load

Strain accumulation over extended operating durations exhibits a characteristic rapid initial rise followed by a steady rate reduction. For long-term sensor offset prediction, empirical testing shows that shear creep strain correlates linearly with the natural logarithm of elapsed time over several orders of magnitude. This logarithmic relationship implies that sensor offset drift slows considerably as operating hours accumulate, assuming environmental conditions remain stable.

Thermal cycles disrupt this logarithmic deceleration by re-energizing the polymer network and inducing thermal expansion mismatches. Each excursion above room temperature triggers localized stress relaxation and thermal expansion hysteresis, resetting the primary creep cycle upon return to baseline operating temperatures. Consequently, sensors operating in fluctuating thermal environments exhibit significantly higher cumulative offset drift rates than units maintained at constant ambient temperatures.

Shear creep compliance parameters and strain recovery coefficients for structural sensor adhesives tested under ISO 6721-10 conditions.
Adhesive Polymer Base Test Shear Stress (MPa) Temperature (°C) 100-Hour Compliance (1/GPa) 1000-Hour Compliance (1/GPa) Elastic Recovery (%)
High-Tg Cycloaliphatic Epoxy 2.5 23 0.32 0.38 96.4
High-Tg Cycloaliphatic Epoxy 2.5 85 0.89 1.24 88.1
Room-Temp Cured Bisphenol-A Epoxy 2.5 23 1.15 1.85 74.2
Fluorosilicone Elastomeric Mount 1.0 23 14.80 22.10 62.5
Polyimide High-Temp Die Attach 5.0 85 0.21 0.26 98.2

Long-term transducer baseline wander is often treated as a consequence of installation torque variation or poor mounting flatness, though intrinsic shear compliance and viscoelastic stress decay in the die attach are equally capable of driving it.

Offset

Unintended electrical baseline changes corrupt calibration output without any change in measured physical input. Sensor offset drift rates represent the time derivative of zero-point signal shift, typically quantified in parts per million of full-scale output per year or microvolt output shift per volt excitation per thousand operational hours. Micro-scale shear creep inside structural bonding layers directly generates this electrical offset by altering the residual stress field acting on piezoresistive elements, strain gauge grids, or MEMS capacitive plate gaps.

In piezoresistive silicon pressure sensors, four piezoresistors are arranged in a Wheatstone bridge on a thin micromachined silicon diaphragm. When this die is bonded to a ceramic header or glass pedestal with an organic adhesive, micro-scale shear displacement within the adhesive layer modifies the resting mechanical strain across the diaphragm. Even a shear displacement of a few nanometers at the die edge alters the balancing resistance of the bridge legs, producing measurable baseline offset drift without any external fluid pressure applied.

Matte black industrial sensor modules with illuminated strips are arranged on a surface next to two units linked by a circular multipin connector cable.

Transduction Shift Mechanics in Piezoresistive Elements

Diffused piezoresistors on a silicon membrane convert surface strain fields directly into proportional differential resistance values. The piezoresistive coefficients of monocrystalline silicon are anisotropic and sensitive to mechanical stress state. Shear stresses transferred through the die attach interface modify both longitudinal and transverse internal stress components along the resistor paths.

When an adhesive layer creeps non-uniformly due to localized thickness variations or thermal gradients, the residual stress field across the four Wheatstone bridge arms becomes asymmetrical. This asymmetry unbalances the bridge voltage, yielding an offset signal. Because the piezoresistive coefficient itself depends on temperature, the offset drift rate induced by micro-scale shear creep couples strongly with temperature, magnifying zero-point instability across operational ranges.

A micro-machined force transducer bonded with elevated-temperature-cured epoxy exhibits a zero offset drift rate under 15 ppm of full-scale output per year when held continuously at 23°C and 50 percent relative humidity.
A digital laboratory scale rests beside a handheld calibration tool and a mobile communication device on a dark felt workstation mat.

Zero Point Wander and Temperature Coefficient Interaction

Baseline bridge signals vary non-linearly when structural stress changes coincide with environmental fluctuations. Sensor datasheets frequently separate zero thermal coefficient from long-term stability specifications. In service, however, micro-scale shear creep continually modifies the baseline mechanical stress state, which shifts the effective temperature coefficient of the zero offset.

A sensor calibrated for zero thermal drift at the factory can wander out of its thermal compensation specification over time as adhesive creep redistributes underlying residual stresses.

Annualized offset drift rates and equivalent microstrain accumulation measured across piezoresistive and strain-gauge transducer architectures.
Transducer Sensing Architecture Bonding Material Class Operating Stress Level Annual Shear Strain (µε/yr) Annual Offset Drift (% FSO) Dominant Drift Mechanism
Silicon Piezoresistive Pressure Cell Filled Epoxy Resin Low (1.5 MPa) 12.4 0.085 Adhesive Viscoelastic Creep
Foil Strain Gauge Beam Load Cell Cyanoacrylate Adhesive High (4.0 MPa) 48.2 0.310 Moisture Plasticization Flow
Thin-Film Sputtered Pressure Transducer Inorganic Glass Bond Moderate (2.5 MPa) 0.6 0.004 Substrate Stress Relaxation
MEMS Capacitive Accelerometer Silicone Elastomeric Gel Very Low (0.5 MPa) 85.0 0.520 Polymer Matrix Crosslinking Creep

Operating a polymer-bonded sensor well below half its absolute glass transition temperature limits shear-induced baseline drift to negligible rates over multi-year service periods.

Proof

Measuring sub-micrometer structural displacement experimentally requires specialized fixtures capable of isolating mechanical drift from environmental ambient noise. Validating long-term sensor stability through direct real-time testing across five or ten years is commercially impractical during sensor development and incoming component qualification. Metrologists rely instead on accelerated thermal-mechanical stress procedures to measure micro-scale shear creep compliance and extrapolate annualized drift rates.

Accelerated drift testing involves subjecting transducer assemblies to elevated temperatures and controlled pre-loads inside highly stable environmental test chambers. By tracking shear displacement or zero-point offset changes across logarithmic time intervals at elevated thermal levels, test engineers build Arrhenius activation energy models that scale mechanical degradation dynamics back to normal operating ambients.

A multispectral camera sensor with a multicolored calibration border rests on an industrial metal stand in a digital illustration.

Accelerated Aging Procedures for Drift Rate Quantification

Elevating thermal energy accelerates internal mechanical strain relief according to temperature-dependent activation energy relationships. The time-temperature superposition principle allows high-temperature, short-duration shear creep test data to construct a master curve representing years of ambient physical relaxation. Test protocols maintain precise environmental conditions to prevent secondary chemical degradation from masking physical viscoelastic strain creep.

To quantify micro-scale shear creep drift rates reliably, the experimental sequence must follow a disciplined, un-deviated testing workflow:

  1. Mount the transducer inside a temperature-controlled environmental enclosure connected to a high-precision digital voltmeter and calibrated reference excitation source.
  2. Apply full-scale mechanical load for 100 hours at 23°C to pass initial rapid viscoelastic strain relaxation phase.
  3. Elevate chamber temperature to 70°C while maintaining constant structural load to accelerate polymer matrix creep mechanisms.
  4. Record baseline output signals continuously at one-second intervals over a 500-hour sustained conditioning period.
  5. Cool system to ambient conditions at a rate not exceeding 0.5°C per minute to minimize thermal shock induced residual stresses.
  6. Calculate annualized zero drift velocity by fitting output signal records against logarithmic time decay models.

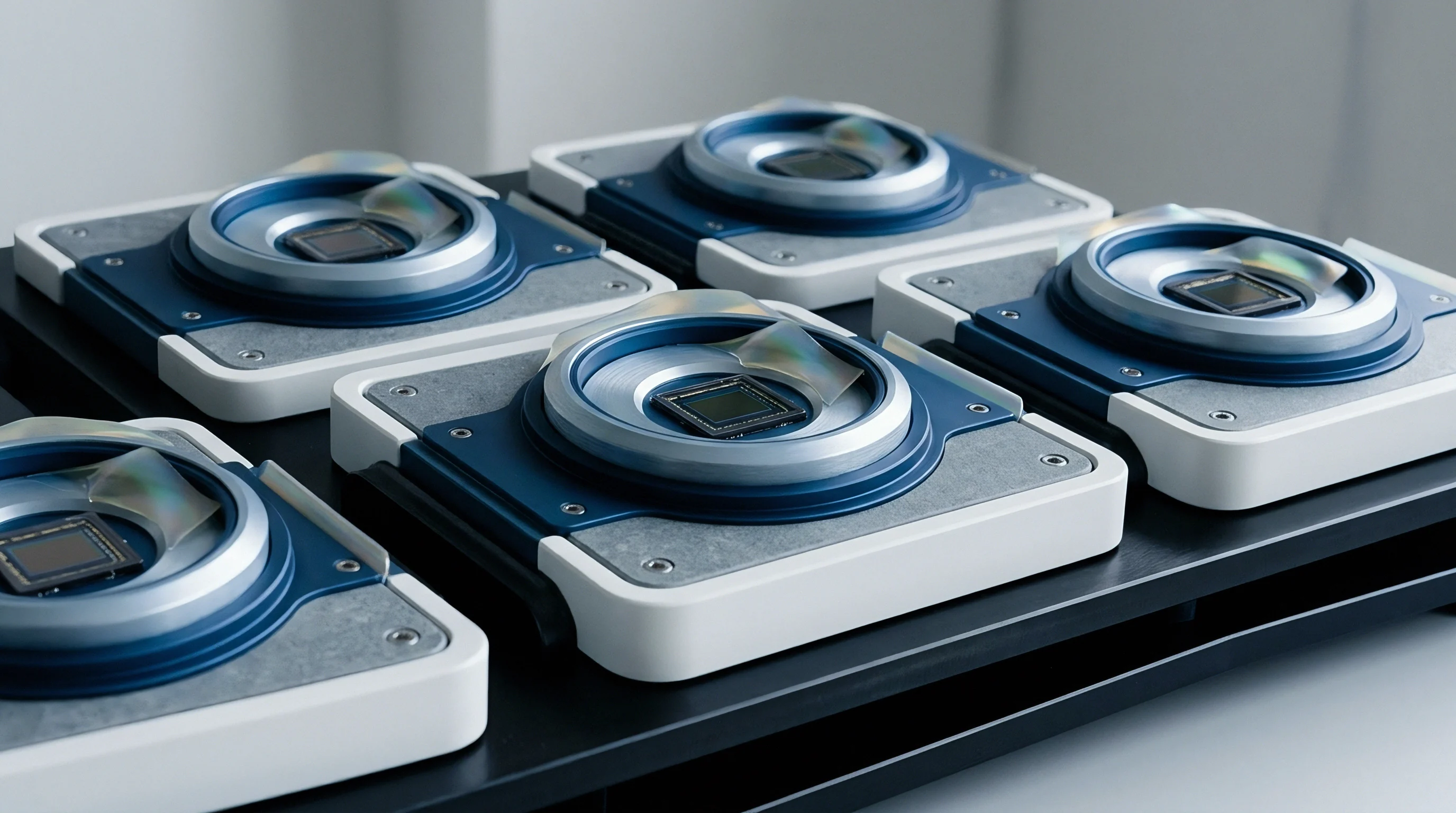

Multiple optoelectronic sensor modules comprising integrated semiconductor dies and blue anodized housings rest on a dark industrial production fixture.

Environmental Chamber Stress Protocols

Controlled thermal enclosures subject transducer assemblies to regulated humidity cycles while digital acquisition systems log continuous sensor response metrics. Environmental chamber stability represents the limiting boundary during drift quantification protocols. Temperature fluctuations inside the test volume must not exceed 0.05°C, as thermal expansion noise masks sub-nanometer adhesive shear displacements.

Excitation voltage supply stability requires high precision, with source noise maintained below one part per million to prevent electronic artifacts from distorting recorded offset drift curves.

Standard compliance under ISO 10012 clause 7.2 mandates that sensor measurement uncertainty budgets include quantified structural drift components derived from extended stability testing.

Requirements set forth in ISO/IEC 17025 accreditation scope rules stipulate that testing laboratories declare long-term measurement drift uncertainty bounds explicitly on calibration certificates rather than relying on unverified manufacturer stability claims.

Model

Structural numerical analysis predicts microscopic strain distribution across complex bonded geometric boundaries under varying operational thermal and mechanical loads. Mathematical models convert micro-scale polymer constitutive behavior into actionable sensor performance metrics. By incorporating non-linear viscoelastic constitutive equations into finite element analysis software packages, mechanical design engineers simulate die-attach shear displacement over thousands of simulated operational hours before committing capital to hardware fabrication.

Finite element models divide the adhesive layer into dense continuum element meshes, with localized refinement at interface corners where shear stress gradients peak. Material definitions utilize multi-term Prony series representations of the shear relaxation modulus derived from dynamic mechanical analysis testing. These computational tools accurately predict localized strain field evolution across active sensing elements, directly mapping micro-scale adhesive creep to predicted Wheatstone bridge offset output shift curves.

A digital render reveals a silicon image sensor mounted on a ceramic carrier positioned above a semiconductor substrate inside an industrial assembly rig.

Why Does Logarithmic Creep Extrapolation Fail after Long Exposure?

Mathematical projections based on early empirical time measurements often underestimate true long-term mechanical baseline displacement. Simple logarithmic creep models assume that polymer relaxation mechanisms remain purely physical and decelerate indefinitely over operational lifetimes. In operational environments, prolonged exposure to ambient humidity, thermal cycling, and continuous mechanical stress introduces secondary degradation mechanisms that break down simple logarithmic rate assumptions.

Over extended service durations exceeding ten thousand hours, physical aging, thermal oxidation, moisture-induced plasticization, and localized micro-cracking alter the crosslinked polymer network. These aging processes initiate tertiary creep regimes where shear displacement rates re-accelerate unexpectedly. Relying solely on short-term 100-hour logarithmic extrapolation leads system integrators to underestimate multi-year zero-point offset drift rates by up to an order of magnitude.

A high precision mechanical assembly aligns an optical fiber with a sensing component within a specialized industrial production environment.

Constitutive Creep Modeling in ANSYS and FEA

Finite element solvers utilize specialized viscoelastic constitutive subroutines to compute localized strain tensor evolution inside bonding films over time. Advanced finite element routines combine thermo-rheologically simple material assumptions with continuous damage mechanics equations. The software calculates localized shear strain components for each structural element within the die-attach mesh at discrete time steps, accumulating viscous shear strains across simulated operating lifetimes.

Integrating finite element constitutive modeling into transducer sourcing specifications requires strict verification checklists during component design review phases:

  • Glass transition evaluation verifies that matrix soft spots remain well above maximum field operating exposure temperatures.
  • Thermal expansion matching aligns substrate and die expansion coefficients to limit steady-state shear stresses.
  • Pre-aging thermal burn-in removes steep early phase viscoelastic displacement before field installation occurs.
  • Full-scale stress budgeting keeps long-term mechanical working loads under ten percent of adhesive shear strength.

Determining whether molecular crosslinking degradation under combined atmospheric humidity and continuous shear load eventually overrides physical aging kinetics remains an open question in long-term polymer reliability physics.

Tariff

Specifying high-stability sensor hardware introduces distinct commercial trade-offs between unit manufacturing cost and long-term field maintenance expenses. Micro-scale shear creep and sensor offset drift rates directly govern the calibration lifecycle costs of industrial control systems, automotive test cells, and medical diagnostic machinery. Low-cost sensors fabricated with standard commercial room-temperature-cured epoxies present low initial purchasing expense but impose severe multi-year operational cost penalties due to frequent field recalibration requirements.

High-precision transducer assemblies utilize inorganic glass-frit bonding, high-temperature cured polyimides, or extensive factory thermal burn-in screening protocols. These engineering steps minimize shear creep compliance and hold offset drift rates under 10 ppm per year. However, these stabilization processes add significant processing labor, thermal cycle yield loss, and specialized calibration equipment amortization costs to the landed unit price.

A black rubber dust blower and a grey abrasive disc rest beside a miniature optical sensor component on a white industrial workbench.

Grade Classification and Calibration Cost Structures

Transducer pricing tiers directly reflect internal bond material selection, pre-conditioning thermal aging regimes, and individual factory calibration procedures. Standard industrial grade sensors undergo basic room-temperature two-point calibration with no extended thermal stabilization. Precision grade units undergo multi-hour thermal burn-in and multi-point temperature compensation.

Ultra-stable metrology grade transducers require extended multi-week thermal aging under electrical pre-load and individually certified drift rate documentation traceable to national metrology standards.

The landed cost of accuracy scales non-linearly as drift specifications tighten. Achieving an order of magnitude reduction in long-term offset drift rate typically triples unit sensor procurement costs due to higher material expenses and elevated factory testing overhead.

Five-year total cost of ownership matrix across sensor accuracy classes accounting for factory screening, recalibration frequency, and field drift risk.
Transducer Grade Specification Initial Unit Cost (USD) Individual Calibration Cert Annual Drift Rate (% FSO) Recalibration Interval (Months) 5-Year Service Burden (USD)
Commercial Grade (Room-Cured Epoxy) 45.00 Not Included 0.350 6 1,250.00
Industrial Precision Grade (High-Tg Epoxy) 185.00 Included (Standard) 0.050 12 450.00
Ultra-Stable Metrology Grade (Glass Bond) 680.00 Included (ISO 17025) 0.005 36 150.00
Five-year service burden assumes field labor costs of $125.00 per recalibration event plus laboratory verification fees.
Specifying a sensor with a pre-conditioned glass-cured bonding layer eliminates field recalibration cycles that exceed the original purchase price of the hardware.
A machined steel ferrule sits on a cleanroom cloth before a radiating array of glass fiber optic filaments in an assembly station.

Field Recalibration Economics and Five Year Burden

Field service operations involving manual zero-point adjustment incur direct labor charges, system downtime, and transport verification costs across equipment operational life. When selecting sensors for mission-critical industrial applications, buying lower-grade sensors with higher intrinsic shear creep rates shifts expenses from capital expenditure to ongoing operational maintenance budgets. In multi-sensor process installations, the cumulative labor expense of performing annual or semi-annual zero offset adjustments quickly dwarf initial procurement savings.

Failing to account for micro-scale shear creep during initial component selection exposes automated processing systems to unmonitored calibration drift, leading to field recalibration expenses that far exceed the price difference of higher-grade transducer assemblies.

Nomenclature

Strain Gauge

Sensor Principle ~ The device translates mechanical deformation into electrical resistance variations through a bonded metallic foil grid.

Shear Creep

Displacement Mechanism ~ Time-dependent angular deformation develops in adhesive layers and solder interconnects subjected to sustained parallel mechanical shear forces.

Zero-Point Offset

Sensor Output ~ Voltage deviations at absolute zero input represent the primary signal discrepancy found in precision measurement systems across industrial instrumentation sectors.

Zero-Point Wander

Instrumental Variance ~ Offset measurements define the deviation of an output signal from a verified reference baseline when the input stimulus remains at zero.

Thermal Pre-Conditioning

Environmental Cycling ~ Controlled exposure to extreme temperatures before final calibration helps to stabilize the mechanical and electrical characteristics of a sensor.

Constitutive Creep Model

Mathematical Formulation ~ Continuum mechanics equations describe time-dependent inelastic strain accumulation in solid materials subjected to sustained mechanical loads below ultimate tensile strength.

Calibration Uncertainty

Error Boundary ~ Non-negative parameter values characterize the dispersion of quantity values assigned to a measured sensor output relative to a national standard.

Creep Compliance

Material Extension ~ A ratio of time-dependent strain to constant stress defines the slow deformation of solids under load.

Thermal Burn-in

Thermal Stabilization ~ Accelerated stress testing acts as a laboratory protocol to force the mortality of defective electronic components before they enter active service.

Stress Relaxation

Tension Decay ~ Gradual reduction in the internal resistive force within a material held at a constant strain level over an extended period.

Shear Stress

Boundary Mechanics ~ Fluid friction acts as a distributed mechanical force vector operating parallel to a solid boundary when a viscous medium flows across that stationary surface.

Thermal Expansion Mismatch

Differential Strain ~ Material displacement occurs when disparate coefficients of linear expansion operate across a joined assembly.
