High Side Current Measurement Principles in Converter Design

High side current sensing requires balancing dV/dt transient immunity and isolated bandwidth against decimation filter delay and parasitic trace inductance.

30.09.26 17 min

Rail

High side current measurement places the transduction element directly on the positive supply rail or along the converter’s switching node. Tapping current at these points provides direct feedback for phase current control, inductor peak tracking, and immediate short-circuit protection. These locations also subject the signal chain to difficult operating conditions.

In half-bridge and full-bridge circuits built around silicon carbide or gallium nitride switches, the high side switching node swings between ground and the high-voltage DC bus in nanoseconds.

Static DC common-mode levels on these rails reach 400 V in automotive traction inverters and up to 1500 V in commercial photovoltaic central converters. Across that baseline, the differential voltage developed by a shunt typically runs between 10 mV and 100 mV at full-scale current. Pulling a 10 mV differential signal off an 800 V DC bus demands high common-mode rejection.

When the power bridge commutes, the high side node experiences slew rates exceeding 100 kV per microsecond, coupling high-frequency transient currents into the sensing circuit through parasitic trace capacitances and inter-winding paths.

A render of a multi channel coil transducer array mounted in metal brackets on a dark textured panel for industrial electronic calibration.

Common Mode Dynamics at High Voltage Nodes

Running a current sensor on a floating switching node forces the input stage to absorb continuous dV/dt stress. The amplifier or isolated converter input must reject both the steady-state bus voltage and the sharp transitions generated whenever a switch fires. Standard differential operational amplifiers do not have the breakdown voltage needed for a direct connection to high-voltage rails.

Dedicated high side sense amplifiers instead use internal lateral DMOS transistors or resistive divider networks to knock down the common-mode potential ahead of the differential stage.

Input divider networks lower the common-mode voltage, but they divide down the differential sense signal by the same ratio. Resistor ratio mismatches as low as 0.01 percent inside the network degrade high-frequency common-mode rejection. On an 800 V bus with a 100 kV per microsecond transient, these fast voltage edges drive displacement currents through internal parasitic capacitances, creating differential offset errors whenever the two input paths have unequal impedance.

A laminated glass housing containing a rectangular wooden element sits on a grey surface under structured grid shadow patterns.

Transient Voltage Edge Effects on Sensing Elements

Fast switching transitions convert small parasitic inductances into sharp voltage spikes. Any current transducer placed in series with the high side switch sees the full bridge dV/dt on every pulse-width modulation cycle. Modern phase legs transition in under 10 ns.

During these swings, stray capacitance between the floating sense layout and grounded heatsinks or chassis hardware provides a path for common-mode displacement current, which flows back through the sense traces and corrupts the differential measurement.

Sensors positioned directly in the high-side current path sit in steep electric field gradients. Electrostatic coupling between the high-voltage node and adjacent ground planes induces circulating currents within the copper traces. Without tightly matched trace geometry and aggressive differential filtering, these transients pass through the signal chain and trigger false overcurrent trips in the inverter controller.

Ignoring high-frequency common-mode rejection during sensor selection leaves input stages vulnerable to saturation from displacement currents, which distorts the feedback signal and risks inverter phase shoot-through.

Shunt

Resistive shunts measure current by developing a proportional voltage drop according to Ohm’s law. Placed on the high side, the resistor carries full phase or bus current while floating at high potential. Sizing the resistance means balancing power dissipation against signal-to-noise ratio: smaller values cut thermal losses, but the resulting millivolt-level signals sit closer to the high-voltage common-mode noise floor.

Precision shunts use alloys such as Manganin, Zeranin, or Evanohm. These materials maintain low temperature coefficients of resistance, typically under 20 ppm per degree Celsius from minus 40 to plus 125 degrees Celsius. Standard surface-mount thick-film parts introduce 1 nH to 5 nH of series inductance, producing large L di/dt spikes during fast switching events.

Metal strip shunts with folded or parallel geometries keep parasitic inductance below 100 pH.

Metallic pressure sensing bellows assembly sits central to concentric rings defining integration levels within industrial measurement architecture.

Resistive Element Selection and Thermal Electromotive Force

Soldering a metallic shunt to copper circuit board pads forms parasitic thermocouple junctions. Interfaces between copper and alloys like Manganin generate a thermal electromotive force via the Seebeck effect. Manganin develops roughly 1 to 3 microvolts per degree Celsius against copper, while Zeranin keeps this thermoelectric voltage below 0.5 microvolts per degree Celsius.

At high currents, uneven heating across the component body establishes a temperature gradient between the two terminal pads, introducing a DC offset at the amplifier input.

A 1 nH trace parasitic inductance generates a 100 mV error pulse when subjected to a 100 A per microsecond current ramp.

In an application with a 1 mOhm shunt carrying a 100 A pulse, the nominal sense voltage is 100 mV. If a 20-degree Celsius gradient develops across a Manganin-to-copper junction, the resulting Seebeck voltage reaches 60 microvolts. Measuring a light load of 1 A produces an expected signal of 1 mV, meaning that same thermal offset introduces a 6 percent measurement error.

Maintaining accuracy requires balanced copper thermal relief around both pads to keep junction temperatures equal.

A multi layered black optoelectronic assembly houses an internal rectangular sensor array connected by a blue braided signal transmission cable.

Four Terminal Kelvin Layout Practices

Reading millivolt signals from low-value shunts requires four-terminal Kelvin connections. Traces carrying load current to the pads must remain completely separate from the high-impedance sense traces. High currents passing through the copper pads generate localized drops that skew the effective resistance if the voltage taps connect into the power path.

Sense traces should originate from the inner center of the shunt pads and run inward as tightly coupled differential pairs. This routing reduces the loop area exposed to magnetic fields from nearby inductors and power switches. Dropping the Kelvin traces to internal PCB layers flanked by ground planes helps shield the differential signal from high dV/dt switching nodes.

High side shunt failures in switch-mode converters trace back to several distinct physical breakdown mechanisms:

  • Thermal Resistance Drift occurs when continuous high current elevates the internal element temperature beyond its rated maximum, causing irreversible microstructural changes in the alloy lattice that permanently alter nominal resistance.
  • Inductive Spike Masking manifests when shunt parasitic series inductance generates a voltage spike during switch turn-on that exceeds the differential input limit of the sense amplifier, blinding the control loop to actual current.
  • Seebeck Offset Generation arises from thermal gradients across copper-to-alloy joints, introducing a false DC offset voltage that shifts zero-current calibration points during ambient temperature ramps.
  • Kelvin Trace Delamination results from localized power dissipation in high-resistance current joints, causing thermal expansion stress that snaps thin differential sense traces adjacent to the power pad.
  • Solder Joint electromigration emerges under sustained high current density and elevated temperatures, causing metal ion transport across the terminal pads that alters joint resistance over extended operating hours.
An illustration shows hands using precision pliers and a screwdriver to assemble a shielded multi-conductor cable connected to an electronic sensor housing.

High Side Current Sense Amplifiers with Flying Capacitors

Conditioning low-level differential voltages in the presence of high common-mode potentials requires specialized front-ends. Standard high side current sense amplifiers use internal high-voltage lateral DMOS transistors to level-shift the differential reading down to a ground-referenced output, operating up to static limits between 80 V and 100 V. On higher voltage rails, flying capacitor topologies provide functional isolation without digital isolators by shuttling a switched capacitor between the floating shunt and a low-side sensing circuit, shedding the DC common-mode voltage while transferring charge proportional to load current.

High Side Shunt Alloy and Sensing Element Physical Characteristics
Alloy Material TCR (ppm/K) Thermal EMF vs Cu (uV/K) Parasitic Inductance (pH) Max Temp (C) Relative Unit Cost
Manganin Metal Strip +-15 2.5 250 170 1.0
Zeranin Sheet Element +-10 0.3 180 140 2.2
Evanohm Low-Profile Foil +-5 0.5 100 200 3.8
Thick Film Ceramic +-100 10.0 1200 125 0.3

Placing the shunt on the DC bus ahead of the half-bridge yields a quiet current waveform, while locating it directly in the phase leg forces the component to ride every voltage transition of the switching node.

Isolation

Galvanic isolation keeps high bus voltages away from low-voltage controllers while transmitting current feedback across the barrier. When common-mode voltages exceed 100 V, optical, capacitive, or magnetic barriers become mandatory. Implementations divide between isolated analog amplifiers, which send an analog replica across the gap, and isolated modulators, which convert the shunt voltage into a high-speed digital stream.

Isolated modulators use sigma-delta converters to digitize small differential voltages riding on the high rail. The resulting single-bit stream crosses an integrated capacitive or magnetic barrier at clock rates between 10 MHz and 20 MHz. Digital decimation filters running in an FPGA or microcontroller then process the bitstream into high-resolution digital values.

A precision test probe with a needle tip makes electrical contact with a stainless steel cylindrical component against a bright outdoor background.

Galvanic Barrier Architecture in Switching Leg Measurement

Capacitive isolation barriers rely on silicon dioxide layers fabricated inside the chip package to withstand continuous voltages up to 1500 V DC and transient surges past 8 kV peak. Magnetic isolation devices use micro-transformers built on silicon, passing data pulses through polyimide insulation. Both designs offer high dielectric breakdown strength in surface-mount packages.

Parasitic capacitance across the isolation gap remains a major vulnerability during steep dV/dt transitions. Capacitive barriers typically present 0.5 pF to 1.5 pF across the isolation gap. Rapid common-mode swings drive high displacement currents through this path.

If these transients exceed the component’s common-mode transient immunity rating, the displacement currents inject noise into the low-side receiver, resulting in missing clock edges or corrupted data.

Complex multi layered hinge mechanism rendered in three dimensions with metallic and synthetic components stands centrally on a flat surface within a neutral studio environment.

Isolated Delta Sigma Modulators and Digital Decimation

Isolated sigma-delta modulators sample input signals continuously at high oversampling rates, spreading quantization noise across a wide frequency band where digital filters can strip it away. Digital sinc filters, typically sinc3 designs, reconstruct 12-bit to 16-bit measurements from the raw bitstream. Raising the oversampling ratio improves measurement resolution at the expense of added filter latency.

Compliance with IEC 60747-17 requires continuous high-voltage stress testing to verify isolation lifetime under repetitive 1200 V peak switching waveforms.

The latency introduced by a sinc3 decimation filter equals three filter clock periods multiplied by the oversampling ratio. At a 20 MHz clock and an oversampling ratio of 64, the sinc3 filter introduces 9.6 microseconds of group delay. This lag shows up directly in fast control loops, requiring adjustments to the digital feedback compensation to keep the system stable.

A brass electrical clamp secures a wire to a black sensing component resting on a textured concrete slab within a laboratory.

Can Isolated Modulators Maintain Accuracy under Extreme Switching Rates?

The high dV/dt generated by silicon carbide stages excites parasitic capacitances throughout the sensing hardware. Handling these edges requires modulators with common-mode transient immunity ratings between 100 kV per microsecond and 150 kV per microsecond. Preserving measurement fidelity under these conditions requires symmetric trace layout on the floating front end to keep stray capacitance balanced on both inputs.

High Side Galvanic Isolated Sensing Technology Comparison
Technology Type Max Isolation (V RMS) Typical CMTI (kV/us) Bandwidth (kHz) Signal Delay (us) AEC-Q100 Available
Optocoupler Isolated CSA 3750 25 100 2.50 Yes
Capacitive Isolated Delta-Sigma 5000 100 1000 0.80 Yes
Magnetic Pulse-Transformer ADC 5000 150 1500 0.40 Yes
Isolated SAR ADC Subsystem 3000 50 500 1.20 No

Calibrating and commissioning a high side isolated delta-sigma measurement architecture demands a structured sequence of bench checks to guarantee signal fidelity and timing alignment:

  1. Apply zero differential voltage across high side input terminals while powering the high voltage bridge to establish base digital decimation filter offset.
  2. Inject a precision DC differential calibration voltage into the high side shunt input terminals across the full-scale input voltage window.
  3. Record the digital decimation filter output word across twenty bitstream window averages to establish gain correction factors.
  4. Slew the common-mode voltage on the high side supply node at maximum target dV/dt using a pulse generator while monitoring bitstream error rates.
  5. Adjust low side decimation filter window parameters to balance bitstream noise attenuation against control loop step response latency.

Safety standards including IEC 61800-5-1 and IEC 60747-17 set strict layout rules for clearance and creepage, where clearance defines direct spacing through air and creepage tracks distance across the board surface.

Coil

Magnetic current sensors read current by detecting the field generated around the primary conductor. Because the sensing mechanism couples via magnetic flux rather than physical contact, these devices provide inherent galvanic isolation between the power conductor and the signal electronics. Operating without an electrical connection to the high-voltage rail eliminates high common-mode voltage stresses and avoids the resistive losses of shunts.

Sensors based on closed-loop Hall effect, fluxgate, or magnetoresistive elements capture current across wide bandwidths. Open-loop designs route the high side conductor through a ferromagnetic core that concentrates magnetic flux onto the transducer. Closed-loop units drive an opposing field through a secondary winding to keep net flux in the core at zero, improving linearity and reducing thermal drift.

Rectangular material coupons including textured polymers, brushed metals, and elastomers are arranged in overlapping rows on a blue workspace.

Hall Effect Transducers in Floating Inverter Phases

Hall effect sensors operate on the Lorentz force, generating a voltage perpendicular to current flow and magnetic flux. Placing a Hall element inside the gap of a core wrapped around a high side conductor produces an output proportional to load current. Open-loop Hall sensors, however, are subject to magnetic core hysteresis and saturate under large overcurrent transients.

Core saturation flattens the output signal when currents exceed design limits, blinding the controller to peak inductor currents during fault conditions. Open-loop Hall sensors also experience temperature-driven gain drift of roughly 0.05 percent per degree Celsius, which requires firmware correction.

Flexible polyimide substrate and a precision metal ring rest on a painted mounting bracket attached to an industrial storage rack.

Anisotropic and Tunnel Magnetoresistive Coreless Sensing

Magnetoresistive devices vary their electrical resistance in response to an external magnetic field. Anisotropic Magnetoresistive (AMR) and Tunnel Magnetoresistive (TMR) sensors offer higher sensitivity and faster response than standard Hall cells. Integrated coreless designs mount an AMR or TMR bridge directly over an internal leadframe trace inside a standard IC package.

Twisting differential sense traces tight against the PCB ground plane minimizes magnetic loop pickup from neighboring phase legs.

Operating without a ferromagnetic core eliminates magnetic saturation and core hysteresis while shrinking package size. Coreless TMR sensors deliver bandwidths above 1 MHz with propagation delays under 300 ns, making them practical for wide-bandgap converters. Isolation is provided by insulating die-attach layers between the primary leadframe and the sensor die.

A small electronic sensing component rests inside a clear rigid tube positioned on a metal industrial workbench beside manual assembly equipment.

Magnetic Shielding and Stray Field Immunity

Magnetic sensors pick up any stray fields that reach the active element. In multi-phase converters, currents in adjacent phases generate fringe fields that cause crosstalk, distorting the current reading on neighboring channels.

Suppressing magnetic cross-talk requires physical shielding or differential sensing layouts. Differential magnetoresistive sensors position two elements to detect opposing magnetic polarities from the primary conductor. Uniform external fields induce identical voltages in both elements, allowing a differential amplifier to cancel the external common-mode field while preserving the signal from the target conductor.

Magnetic High-Side Sensing Technology Performance Comparison
Transducer Mechanism Bandwidth (kHz) Linearity Error (%) Thermal Drift (%/C) Stray Field Rejection Footprint Type
Open-Loop Hall Core 50 1.00 0.050 Low Chassis Module
Closed-Loop Hall Core 200 0.10 0.005 High Chassis Module
Closed-Loop Fluxgate 500 0.01 0.001 Very High Chassis Module
Integrated TMR Coreless 1500 0.50 0.010 Moderate SOIC-16 Package

A systematic selection checklist ensures that magnetic transducer characteristics match converter operating profiles:

  • Primary Current Rating defines peak continuous and transient current limits without causing thermal damage to the internal copper conductor or magnetic core saturation.
  • Isolation Voltage Rating dictates the maximum continuous high voltage and transient withstand capability between the power leadframe and low side pins.
  • Magnetic Field Immunity establishes the sensor’s ability to reject external interference from nearby phase conductors and filtering inductors.
  • Signal Bandwidth Ceiling determines the highest frequency current component the sensor can track accurately without magnitude attenuation or phase distortion.
  • Propagation Delay Limit establishes the time lag between primary current initiation and sensor output voltage stabilization for trip loop timing.

Datasheet thermal drift specifications for coreless magnetoresistive ICs typically reflect die-level stabilization rather than total assembly behavior when mounted on thin PCB copper.

Bandwidth

Current feedback in switch-mode converters needs enough bandwidth to follow steep inductor current slopes and fast PWM transitions. Sensing bandwidth sets loop phase margins and governs short-circuit detection speed. Silicon carbide and gallium nitride converters switch between 100 kHz and several megahertz, requiring sensor bandwidths of 1 MHz to 5 MHz to track switching harmonics accurately.

Propagation delay through the signal chain erodes phase margin in the control loop. Under peak current mode control, delayed current feedback skews the perceived duty cycle, creating sub-harmonic oscillation and peak current errors. Signal chains have to balance front-end filtering against signal delay to maintain transient response.

Six identical electronic sensing modules with integrated polyimide flexible circuits and protective polymer housings stand aligned beside a stainless steel vernier caliper.

Propagation Delay and Short Circuit Overcurrent Latency

Overcurrent protection relies on rapid sensing to turn off switches before thermal runaway destroys the power devices. Silicon carbide MOSFETs tolerate short circuits for under 2 microseconds, and gallium nitride parts can fail in less than 200 nanoseconds.

Isolated delta-sigma architectures introduce substantial latency through their digital decimation filters. A 9.6-microsecond delay through a digital sinc filter is too slow for short-circuit protection. Modern isolated sensor ICs address this with dual-path architectures: a decimated high-resolution path for the main feedback loop, and a parallel analog comparator path with sub-250-nanosecond propagation delay dedicated to fast fault trips.

A mechanical conveyor assembly featuring a drive roller mechanism exhibits surface degradation and structural wear on its side mounting bracket.

Digital Sinc Filter Setting Time versus Control Loop Phase Margin

Balancing digital decimation filters on isolated modulators requires trading signal-to-noise ratio against group delay. Higher-order filters (sinc3 versus sinc1) and higher oversampling ratios suppress quantization noise to yield more effective bits, but their step settling times increase with filter length, adding dead time to the feedback loop.

Running a sinc3 filter with an oversampling ratio of 32 on a 20 MHz clock yields a 2.4-microsecond group delay. In a converter switching at 100 kHz (a 10-microsecond period), this 2.4-microsecond delay introduces 86.4 degrees of phase lag at the switching frequency. That phase lag erodes loop phase margin, often forcing designers to lower overall loop bandwidth to keep the converter stable.

Phase lag introduced by digital anti-aliasing filters shrinks the phase margin of high-bandwidth power converter control loops.

Engineering robust high side current measurement specifications requires formal documentation of all operating parameters, environmental limits, and physical interface requirements:

  • Dynamic Bandwidth Range specifies upper and lower minus 3 dB frequency limits under nominal load and temperature conditions.
  • Maximum Propagation Delay defines the worst-case time delay from input current transition to ninety percent output voltage realization.
  • Common Mode Transient Immunity declares the minimum dV/dt slew rate the isolated current measurement system tolerates without bit error or signal interruption.
  • Thermal Offset Coefficient lists maximum allowed zero-current output voltage drift across the entire rated operating temperature window.
  • Isolation Withstand Voltage details continuous DC working voltage limits alongside transient impulse surge ratings per applicable safety standards.

Control loops must be designed to accommodate isolated modulator filter latency shifts across the system’s operating temperature range without losing stability margin.

Cost

Selecting a high side current sensor involves balancing part pricing against the full bill of materials and board space. Real implementation costs include the sensing IC, isolated auxiliary power supplies, precision shunts, PCB layer usage, and required thermal relief. Discrete non-isolated sense amplifiers are inexpensive, but they hit common-mode voltage limits below 100 V.

Higher rail voltages require galvanic isolation, which raises component costs. A capacitive isolated delta-sigma modulator paired with an external precision metal-strip shunt costs 1.50 to 3.50 US dollars in volume. Integrated coreless TMR sensors run between 2.50 and 5.00 US dollars each, saving PCB space by integrating the primary conductor.

Closed-loop fluxgate modules occupy the top of the price range at 25.00 to 80.00 US dollars, which confines them mostly to high-precision utility-scale inverters.

Industrial sensor housing with transparent protective cover bolts securely to layered mounting plates affixed beside metallic conduit runs on a dark vertical surface.

BOM Trade Offs across Voltage Isolation Tiers

Sensing on floating rails requires isolated secondary power to run the high side input electronics. Isolated modulators generally need a clean 3.3 V or 5 V rail referenced to the high side. Supplying this rail takes an isolated DC-DC converter, bootstrap circuit, or auxiliary transformer winding, which adds 0.80 to 1.50 US dollars per channel ~ often more than the sensing IC itself.

Coreless magnetic sensors run entirely off the low-side rail, avoiding the need for high-side isolated supplies. This cuts bill-of-materials cost, lowers component counts, and improves overall mean time between failures.

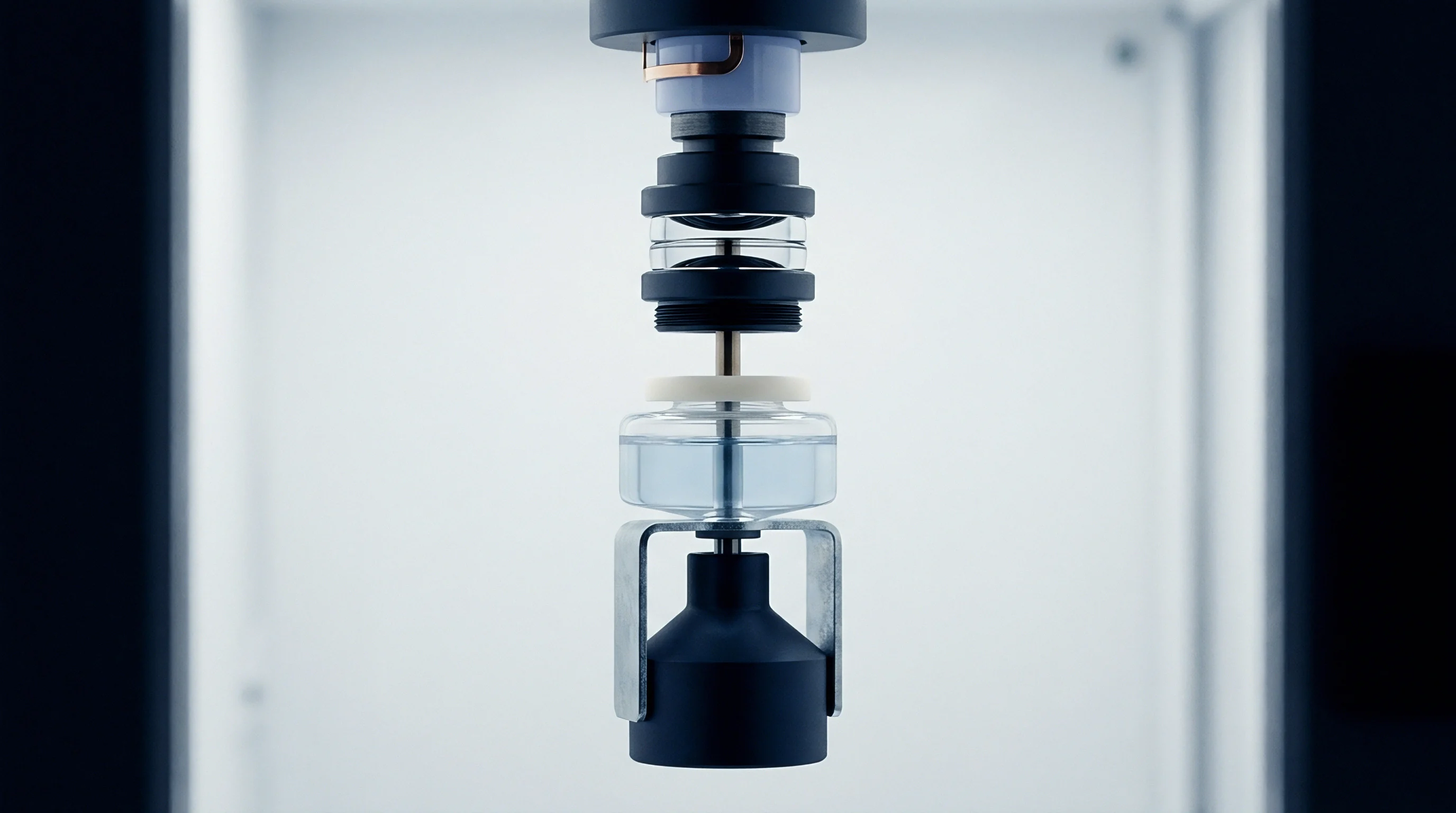

An assembled optical sensor probe features transparent cylindrical components and mechanical mounting brackets suspended within a sterile bright white measurement enclosure.

Dual Sourcing Realities for Automotive Grade Sensing ICs

Automotive applications add strict reliability and supply-chain requirements. Sensing hardware for traction inverters requires AEC-Q100 Grade 1 or Grade 0 qualification, commanding a 20 to 35 percent price premium over industrial parts. Keeping production lines running also requires qualified second sources for active bill-of-materials components.

Pin-compatible alternatives exist for popular isolated delta-sigma modulators from several chipmakers. However, clock frequencies, internal reference voltages, and filter timing vary between manufacturers. Swapping an isolated modulator for an alternate source requires updating digital decimation filter registers in firmware to maintain calibration and loop timing across builds.

Nomenclature

IEC 60747-17

Standardization Document ~ Magnetic and capacitive isolation for semiconductor devices requires specific qualification to ensure long term safety in industrial environments.

Manganin

Precision Alloy ~ Copper manganese nickel solid solution compositions deliver stable electrical resistance with an exceptionally low temperature coefficient near ambient room temperature.

Propagation Delay

Signal Transit ~ Metrological evaluation requires measuring propagation delay as the precise interval elapsed between the transmission of a waveform boundary from a source and its subsequent detection at a designated receiver.

Tunnel Magnetoresistance

Quantum Tunneling ~ Quantum mechanical phenomena describe the spin-dependent tunneling of electrons through thin insulating barrier layers separating two ferromagnetic conducting electrodes.

Zeranin

Resistive Alloy ~ Precision resistive alloys composed primarily of copper, manganese, and tin are engineered to provide exceptionally low temperature coefficients and high long-term stability.

Common Mode Rejection Ratio

Rejection Capability ~ Logarithmic figure of merit suppresses signals appearing simultaneously on both input terminals of an amplifier.

Current Shunt

Measurement Resistor ~ Low-resistance conductors provide a calibrated voltage drop proportional to the magnitude of the electrical flow passing through them.

Parasitic Inductance

Electromagnetic Impediment ~ Unintended inductance represents the inherent property of conductive pathways in electronic circuits to store magnetic energy through the generation of magnetic fields around current carriers.

Fluxgate

Magnetic Transducer ~ High precision magnetometry relies on the periodic saturation of a high permeability core to measure DC or low frequency magnetic fields.

High-Side Sensing

Monitoring Configuration ~ Current measurement performed on the positive supply rail provides a direct path for detecting ground faults.

Isolated Amplifier

Signal Conditioning ~ Galvanic signal decoupling components pass analog voltage signals across high-voltage insulation barriers without direct electrical contact.

Digital Decimation Filter

Signal Reduction ~ Arithmetic operations on sampled data reduce the output sample rate while maintaining the integrity of the baseband frequency content.
